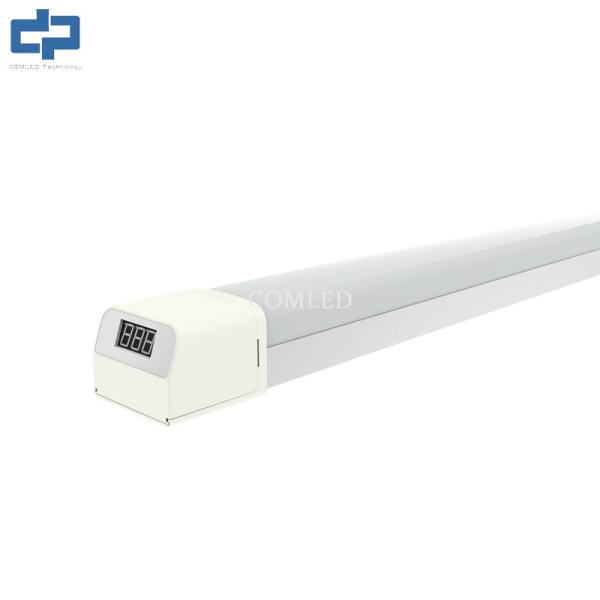

2FT Dimmable Led Batten Light With Emergency And Self - Testing
Function For Garage
2FT dimmable LED batten light with emergency and self-testing
functions is an ideal lighting solution for garages. Designed for
both efficiency and reliability, it offers customizable dimming
options and ensures continuous operation during power outages with
its built-in emergency feature. Perfect for both residential and
commercial spaces, this light is designed to meet the demanding
needs of garages, providing optimal brightness and long-lasting
performance.
Product Features:
Dimmable Functionality: With a flexible dimming range, this fixture
allows you to adjust the light intensity according to your needs,
offering a comfortable and energy-efficient lighting experience.
Emergency Capability: Equipped with a LiFePO4 battery, it ensures
over 3 hours of backup lighting at 2W, keeping your garage
illuminated even during power failures.
Self-Testing Feature: The light comes with a self-checking and
self-testing system, ensuring that the emergency function is always
ready to perform when needed.
High Luminous Efficacy: Utilizing SMD2835 LED chips, this fixture
delivers an impressive luminous efficacy of 120-150lm/W, providing
bright and clear illumination for your garage space.
Durable Construction: The robust aluminum housing and
high-transmittance PC diffuser offer durability and protection,
making this fixture suitable for various garage environments while
ensuring efficient light distribution.
LED Batten Light Fitting(M-series) Specification Parameter Data:
| Model | Input voltage | Watt | Sensor dimming standby | Emergency | Dispaly and Remote setting(option) |
| ZL-MBLP18-2FT-DN | AC110V or 230V | 18W | x | x | √ |
| ZL-MBLP36-4FT-DN | AC110V or 230V | 36W | x | x | √ |
| ZL-MBLP44-5FT-DN | AC110V or 230V | 44W | x | x | √ |
| ZL-MBLP18-2FT-DS | AC110V or 230V | 18w | 100% / 20% /OFF | x | √ |
| ZL-MBLP36-4FT-DS | AC110V or 230V | 36W | 100% / 20% /OFF | x | √ |
| ZL-MBLP44-5FT-DS | AC110V or 230V | 44w | 100% / 20% /OFF | x | √ |
| ZL-MBLP18-2FT-DE | AC110V or 230V | 18W | x | >3hrs@2W | √ |
| ZL-MBLP36-4FT-DE | AC110V or 230V | 36w | x | >3hrs@2W | √ |
| ZL-MBLP44-5FT-DE | AC110V or 230V | 44w | x | >3hrs@2W | √ |
| ZL-MBLP18-2FT-DES | AC110V or 230V | 18W | 100% / 20% /OFF | >3hrs@2W | √ |
| ZL-MBLP36-4FT-DES | AC110V or 230V | 36w | 100% / 20% /OFF | >3hrs@2W | √ |
| ZL-MBLP44-5FT-DES | AC110V or 230V | 44w | 100% / 20% /OFF | >3hrs@2W | √ |
| Note: √ -Contain this function; x -No this function |
LED Batten Light Fitting(M-series) Specification Details:
| Model | ZL-MBLP18-2FT | ZL-MBLP36-4FT | ZL-MBLP44-5FT |
| Rated Power | 18W | 36W | 44W |
| Install | Surface Mount/Hanging/Suspended |
| Protection Rating | IP65 IK10 |
| Housing | Aluminum |
| Optics | PC Milky Diffuser |
| Connection Type | Quick Wiring |
| Operating Temperature | -20℃ to 40℃(Emergency version: 0℃ to 40℃) |
| Warranty | 5 Years |
| Dimming(Option) | Sensor Dimming - 3 Stepped Version(100%-20%-off) |
| Emergency(Option) | 3 Hours+ @3W LiFePO4 Battery |
| PHOTOMETRIC |
| Luminous Efficacy | 120-150lm/W |
| LED Chips | SMD2835 |
| CCT | 3000K/4000K/5000K/6500K |
| CRI | >85 |
| Beam Angle | 120 degree |
| ELECTRICAL |
| Input power Supply | AC200-240V/50-60HZ |
| Power Factor | 0.92 |
| Flicker | No Flicker |
| Lifespan@Ta25°(L70) | 54,000 hours |
| Package Dimensions | 620*85*70mm | 1220*85*70mm | 1520*85*70mm |
LED Batten Light Fitting Size:
LED Batten Light Fitting Package Specification
Every lumianire is packed by PP big for dust-proof and scratch
proof.
