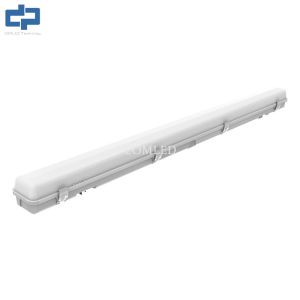

18W-20W Emergency Weatherproof Batten Light combines high-quality
performance with advanced features, ideal for applications in areas
that require reliable, energy-efficient, and durable lighting.
Designed with an IP65 protection rating, it is perfect for
environments exposed to harsh weather conditions such as tunnels,
parking lots, and warehouses. Equipped with a sensor dimming
function for energy efficiency, this luminaire adjusts its
brightness automatically based on occupancy, reducing power
consumption. The emergency backup feature ensures up to 3 hours of
lighting during power failures, enhancing safety in critical areas.
Product Features:
Weatherproof Design: With an IP65 rating, this batten light is
fully protected against dust and water ingress, making it suitable
for both indoor and outdoor use in extreme conditions.
Energy-Saving Dimming Function: The microwave sensor dimming
function adjusts brightness in real-time (100%-20%-OFF), ensuring
optimal energy use based on the presence of people in the area.
Reliable Emergency Lighting: This fixture includes an emergency
option with a 3.6W LiFePO4 battery that provides over 3 hours of
backup lighting during power outages, ensuring continued safety in
emergency situations.
Durable Construction: Built with a high-grade polycarbonate housing
and milky diffuser, it offers both impact resistance (IK08) and
excellent light diffusion, reducing glare and providing uniform
illumination.
Versatile Installation Options: Designed for surface mounting,
suspended, or linkable installations, this fixture offers
flexibility for various lighting setups in industrial, commercial,
and public spaces.
LED waterproof batten lights(P1-Series) PARAMETER DATA:
| Model | Input voltage | Watt | Sensor Dimming standby | Emergency |
| ZL-PSBLP18-2FT-CN | AC110V or 230V | 18w | x | x |
| ZL-PSBLP36-4FT-CN | AC110V or 230V | 36w | x | x |
| ZL-PSBLP44-5FT-CN | AC110V or 230V | 44w | x | x |
| ZL-PSBLP18-2FT-CS | AC110V or 230V | 18w | 100% / 20% /OFF | x |
| ZL-PSBLP36-4FT-CS | AC110V or 230V | 36w | 100% / 20% /OFF | x |
| ZL-PSBLP44-5FT-CS | AC110V or 230V | 44w | 100% / 20% /OFF | x |
| ZL-PSBLP18-2FT-CE | AC110V or 230V | 18w | x | >3hrs@3.6W |
| ZL-PSBLP36-4FT-CE | AC110V or 230V | 36w | x | >3hrs@3.6W |
| ZL-PSBLP44-5FT-CE | AC110V or 230V | 44w | x | >3hrs@3.6W |
| ZL-PSBLP18-2FT-CES | AC110V or 230V | 18w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-PSBLP36-4FT-CES | AC110V or 230V | 36w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-PSBLP44-5FT-CES | AC110V or 230V | 44w | 100% / 20% /OFF | >3hrs@3.6W |
| Note: x -No this function |
LED waterproof batten light source and performance parameters
PHOTOMETRIC:
| Luminous Efficacy | 110-140lm/w |
| LED | SMD2835 |
| CCT | 3000K/4000K/5000K/6000K |
| CRI | >80 |
| Beam Angle | 120 degree |
ELECTRICAL:
| Input power Supply | AC220-240V, 50/60Hz |
| Power Factor | > 0.9 |
| Lifespan@Ta25°(L70) | 54,000 hours |
| Electrical Classification | Class I |
| Package Dimensions | 690*116*97mm | 1280*116*97mm | 1580*116*92mm |
LED Waterproof Batten Light Fixture Application:
This LED Waterproof Batten Light Fixture is widely used in
commercial space, fire stairs, back of house, underground passage,
parking lots.
