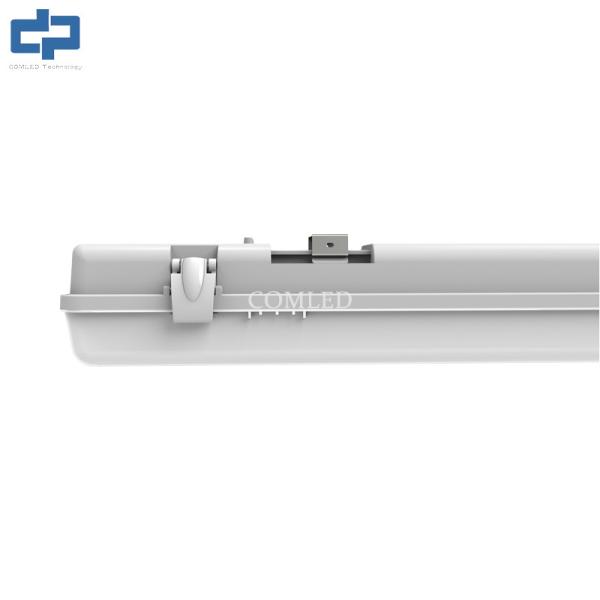

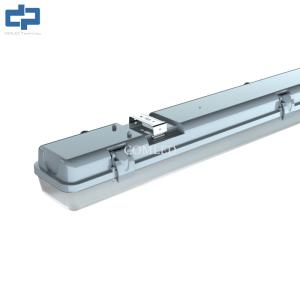

IP65 Rating Tri-Proof LED Light is a high-performance 4-foot light
fixture designed to meet the toughest conditions. Engineered for
superior durability, this light features an IP65 rating, making it
fully protected against dust and water, perfect for both indoor and
outdoor applications. With emergency duration capabilities of over
3 hours, it ensures continuous lighting even during power outages.
This makes it an ideal choice for tunnels, warehouses, parking
lots, stairwells, and other critical environments that require
reliable, long-lasting illumination. Equipped with the latest
SMD2835 LED technology, it delivers exceptional brightness and
energy efficiency.
Key Features:
High Protection Rating: With IP65 and IK10 ratings, this fixture is
designed for dust-tight and waterproof performance, making it ideal
for harsh environments like tunnels, parking garages, and
industrial spaces.
Emergency Lighting: Equipped with a LiFePO4 battery, this light
offers over 3 hours of backup power, ensuring uninterrupted
lighting during power outages for added safety and security.
Energy Efficient: Utilizing SMD2835 LED technology, this fixture
achieves an impressive luminous efficacy of 110-140lm/w, offering
high brightness while reducing energy consumption.
Long Lifespan: Designed to last for 54,000 hours (L70), this light
fixture provides reliable performance and reduces the need for
frequent replacements, saving on maintenance costs.
Flexible Installation: The fixture can be surface mounted,
suspended, or linked with other units, providing versatile
installation options for various spaces and lighting needs.
LED waterproof batten lights(P1-Series) PARAMETER DATA:
| Model | Input voltage | Watt | Sensor Dimming standby | Emergency |
| ZL-PSBLP18-2FT-CN | AC110V or 230V | 18w | x | x |
| ZL-PSBLP36-4FT-CN | AC110V or 230V | 36w | x | x |
| ZL-PSBLP44-5FT-CN | AC110V or 230V | 44w | x | x |
| ZL-PSBLP18-2FT-CS | AC110V or 230V | 18w | 100% / 20% /OFF | x |
| ZL-PSBLP36-4FT-CS | AC110V or 230V | 36w | 100% / 20% /OFF | x |
| ZL-PSBLP44-5FT-CS | AC110V or 230V | 44w | 100% / 20% /OFF | x |
| ZL-PSBLP18-2FT-CE | AC110V or 230V | 18w | x | >3hrs@3.6W |
| ZL-PSBLP36-4FT-CE | AC110V or 230V | 36w | x | >3hrs@3.6W |
| ZL-PSBLP44-5FT-CE | AC110V or 230V | 44w | x | >3hrs@3.6W |
| ZL-PSBLP18-2FT-CES | AC110V or 230V | 18w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-PSBLP36-4FT-CES | AC110V or 230V | 36w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-PSBLP44-5FT-CES | AC110V or 230V | 44w | 100% / 20% /OFF | >3hrs@3.6W |
| Note: x -No this function |
LED waterproof batten light source and performance parameters
PHOTOMETRIC:
| Luminous Efficacy | 110-140lm/w |
| LED | SMD2835 |
| CCT | 3000K/4000K/5000K/6000K |
| CRI | >80 |
| Beam Angle | 120 degree |
ELECTRICAL:
| Input power Supply | AC220-240V, 50/60Hz |
| Power Factor | > 0.9 |
| Lifespan@Ta25°(L70) | 54,000 hours |
| Electrical Classification | Class I |
| Package Dimensions | 690*116*97mm | 1280*116*97mm | 1580*116*92mm |
LED Waterproof Batten Light Fixture Application:
This LED Waterproof Batten Light Fixture is widely used in
commercial space, fire stairs, back of house, underground passage,
parking lots.
