36W Sensor Dimming LED IP65 Weatherproof Batten Fitting is designed
for demanding industrial environments where reliability,
efficiency, and durability are essential. Featuring advanced
SMD2835 LED technology, it delivers high luminous efficacy and a
long lifespan of up to 54,000 hours. Its robust IP65 protection
rating ensures superior performance even in harsh conditions such
as dusty, wet, or outdoor areas. Ideal for warehouses, parking
lots, tunnels, and industrial facilities, this lighting solution
provides excellent energy savings and is equipped with sensor
dimming capabilities for enhanced convenience and efficiency.
Key Features:
IP65 Weatherproof and IK10 Impact Resistance: Offers maximum
protection against water, dust, and physical impacts, making it
perfect for industrial and outdoor applications.
High Efficiency SMD2835 LEDs: Provides a luminous efficacy of
220lm/w, ensuring bright and energy-efficient lighting.

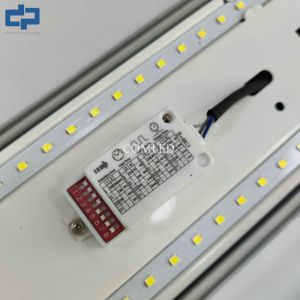

Sensor Dimming Function: The built-in microwave sensor adjusts the
light output based on occupancy, reducing energy consumption in
unoccupied areas.
Long Lifespan: With a lifespan of 54,000 hours, this fixture
requires minimal maintenance and reduces replacement costs.
Easy Installation and Maintenance: Clip-fixed driver and large
terminal block (5.0mm) allow for straightforward installation and
hassle-free maintenance, saving time and effort during setup or
service.
LED waterproof batten lights(P1-Series) PARAMETER DATA:
| Model | Input voltage | Watt | Sensor Dimming standby | Emergency |
| ZL-PSBLP18-2FT-CN | AC110V or 230V | 18w | x | x |
| ZL-PSBLP36-4FT-CN | AC110V or 230V | 36w | x | x |
| ZL-PSBLP44-5FT-CN | AC110V or 230V | 44w | x | x |
| ZL-PSBLP18-2FT-CS | AC110V or 230V | 18w | 100% / 20% /OFF | x |
| ZL-PSBLP36-4FT-CS | AC110V or 230V | 36w | 100% / 20% /OFF | x |
| ZL-PSBLP44-5FT-CS | AC110V or 230V | 44w | 100% / 20% /OFF | x |
| ZL-PSBLP18-2FT-CE | AC110V or 230V | 18w | x | >3hrs@3.6W |
| ZL-PSBLP36-4FT-CE | AC110V or 230V | 36w | x | >3hrs@3.6W |
| ZL-PSBLP44-5FT-CE | AC110V or 230V | 44w | x | >3hrs@3.6W |
| ZL-PSBLP18-2FT-CES | AC110V or 230V | 18w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-PSBLP36-4FT-CES | AC110V or 230V | 36w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-PSBLP44-5FT-CES | AC110V or 230V | 44w | 100% / 20% /OFF | >3hrs@3.6W |
| Note: x -No this function |
LED waterproof batten light source and performance parameters
PHOTOMETRIC:
| Luminous Efficacy | 110-140lm/w |
| LED | SMD2835 |
| CCT | 3000K/4000K/5000K/6000K |
| CRI | >80 |
| Beam Angle | 120 degree |
ELECTRICAL:
| Input power Supply | AC220-240V, 50/60Hz |
| Power Factor | > 0.9 |
| Lifespan@Ta25°(L70) | 54,000 hours |
| Electrical Classification | Class I |
| Package Dimensions | 690*116*97mm | 1280*116*97mm | 1580*116*92mm |
LED Waterproof Batten Light Fixture Application:
This LED Waterproof Batten Light Fixture is widely used in
commercial space, fire stairs, back of house, underground passage,
parking lots.
