The 4FT Emergency and Sensor Dimming Waterproof Batten Light
Fixture is a high-performance lighting solution designed to meet
the demands of challenging environments. Featuring a high-grade
polycarbonate (PC) base and a milky PC diffuser, this vapor-tight
luminaire offers an exceptional IP65/IK10 rating, ensuring
durability and superior protection against water, dust, and impact.
Integrated with the latest SMD2835 LED technology, it delivers high
lumen output while minimizing glare, providing clear and efficient

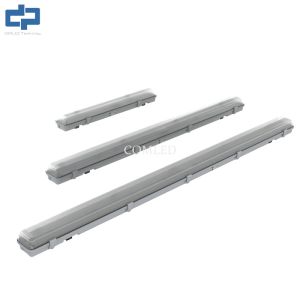

illumination. Available in 2FT, 4FT, and 5FT lengths, with options
for standard, sensor dimming, and emergency functionality, this
light fixture is ideal for applications in tunnels, metro stations,
stairwells, parking lots, electrical rooms, and basements.
Product Features:
Premium Protection: Boasts an IP65 waterproof and IK10 impact
rating, ensuring optimal protection against environmental elements
and physical damage.

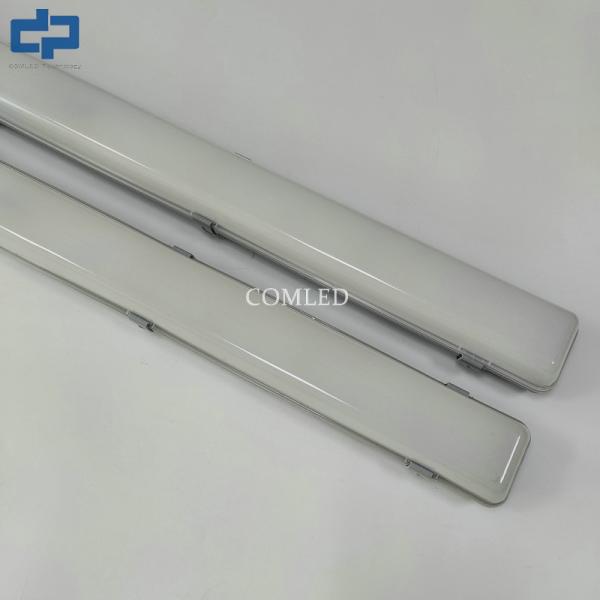

High Transmittance Diffuser: The 86% light transmittance of the PC
diffuser enhances light efficiency while reducing glare, ensuring
uniform illumination without compromising visual comfort.

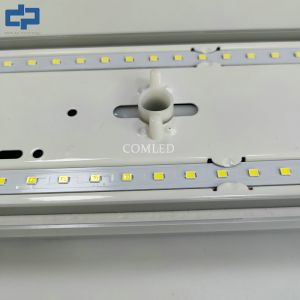

SMD2835 LED Technology: Equipped with a powerful 220lm/w SMD2835
LED chip, this fixture delivers bright, energy-efficient lighting,
approved by LM80 for quality and longevity.
Easy Installation and Maintenance: Features a large 5.0mm terminal
block for simple wiring, along with a clip-fixed driver for
effortless replacement and maintenance, minimizing downtime.
Flexible Dimming Options: With the 5.8G HF sensor dimming function,
this fixture automatically adjusts brightness according to ambient
light conditions, offering energy savings and enhanced
functionality.
Emergency Backup Function: Available with an emergency function,
the light includes a specialized battery housing and quick
maintenance access, ensuring reliable illumination during power
outages.
LED waterproof batten lights(P1-Series) PARAMETER DATA:
| Model | Input voltage | Watt | Sensor Dimming standby | Emergency |
| ZL-PSBLP18-2FT-CN | AC110V or 230V | 18w | x | x |
| ZL-PSBLP36-4FT-CN | AC110V or 230V | 36w | x | x |
| ZL-PSBLP44-5FT-CN | AC110V or 230V | 44w | x | x |
| ZL-PSBLP18-2FT-CS | AC110V or 230V | 18w | 100% / 20% /OFF | x |
| ZL-PSBLP36-4FT-CS | AC110V or 230V | 36w | 100% / 20% /OFF | x |
| ZL-PSBLP44-5FT-CS | AC110V or 230V | 44w | 100% / 20% /OFF | x |
| ZL-PSBLP18-2FT-CE | AC110V or 230V | 18w | x | >3hrs@3.6W |
| ZL-PSBLP36-4FT-CE | AC110V or 230V | 36w | x | >3hrs@3.6W |
| ZL-PSBLP44-5FT-CE | AC110V or 230V | 44w | x | >3hrs@3.6W |
| ZL-PSBLP18-2FT-CES | AC110V or 230V | 18w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-PSBLP36-4FT-CES | AC110V or 230V | 36w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-PSBLP44-5FT-CES | AC110V or 230V | 44w | 100% / 20% /OFF | >3hrs@3.6W |
| Note: x -No this function |
LED waterproof batten light source and performance parameters
PHOTOMETRIC:
| Luminous Efficacy | 110-140lm/w |
| LED | SMD2835 |
| CCT | 3000K/4000K/5000K/6000K |
| CRI | >80 |
| Beam Angle | 120 degree |
ELECTRICAL:
| Input power Supply | AC220-240V, 50/60Hz |
| Power Factor | > 0.9 |
| Lifespan@Ta25°(L70) | 54,000 hours |
| Electrical Classification | Class I |
| Package Dimensions | 690*116*97mm | 1280*116*97mm | 1580*116*92mm |
LED Waterproof Batten Light Fixture Application:
This LED Waterproof Batten Light Fixture is widely used in
commercial space, fire stairs, back of house, underground passage,
parking lots.
