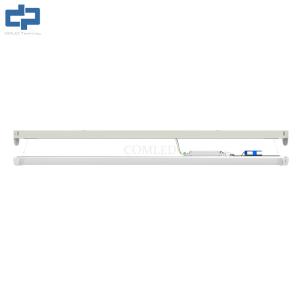

1200mm Power Supply Designed LED Shop Light 36w Batten Light With
Milky Cover
This 1200mm power supply-designed LED shop light is a
high-performance 36W batten light fixture, perfect for commercial
environments such as supermarkets, warehouses, and retail stores.
Featuring a sleek design with a milky polycarbonate diffuser, it
delivers excellent light distribution and a uniform appearance.
This energy-efficient lighting solution uses the latest SMD2835 LED
technology to provide high luminous efficacy while ensuring
longevity and low maintenance costs. The light is available in a
variety of configurations, including surface-mounted, suspended,
and linkable options, making it versatile for various installation
needs.
Product Features:
Durable Construction: The housing is made from a robust combination
of steel and aluminum, ensuring superior strength and long-lasting
durability.
High Light Output: Equipped with SMD2835 LEDs, it achieves up to
150lm/w luminous efficacy, offering excellent brightness with
minimal energy consumption.
Flexible Installation Options: Can be surface mounted, suspended,
or linked together for customized lighting layouts in large spaces.
Efficient Light Diffusion: The milky polycarbonate diffuser ensures
even light distribution with minimal glare, enhancing the overall
lighting quality.
Energy-Efficient: Designed with a high power factor of over 0.9,
this LED light reduces energy consumption while maintaining
exceptional performance.
LED Wraparound Fixtures(V-series) PARAMETER DATA
| Model | Input voltage | Watt | Sensor Dimming standby | Emergency |
| ZL-VSBLP18-2FT-CN-V2 | AC200-240V | 18w | x | x |
| ZL-VSBLP36-4FT-CN-V2 | AC200-240V | 36w | x | x |
| ZL-VSBLP44-5FT-CN-V2 | AC200-240V | 44w | x | x |
| ZL-VSBLP18-2FT-CS-V2 | AC200-240V | 18w | 100% / 20% /OFF | x |
| ZL-VSBLP36-4FT-CS-V2 | AC200-240V | 36w | 100% / 20% /OFF | x |
| ZL-VSBLP44-5FT-CS-V2 | AC200-240V | 44w | 100% / 20% /OFF | x |
| ZL-VSBLP18-2FT-CE-V2 | AC200-240V | 18w | x | >3hrs@3.6W |
| ZL-VSBLP36-4FT-CE-V2 | AC200-240V | 36w | x | >3hrs@3.6W |
| ZL-VSBLP44-5FT-CE-V2 | AC200-240V | 44w | x | >3hrs@3.6W |
| ZL-VSBLP18-2FT-CES-V2 | AC200-240V | 18w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-VSBLP36-4FT-CES-V2 | AC200-240V | 36w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-VSBLP44-5FT-CES-V2 | AC200-240V | 44w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-VSBLP18-2FT-CN-V1 | AC100-277V | 18w | x | x |
| ZL-VSBLP36-4FT-CN-V1 | AC100-277V | 36w | x | x |
| ZL-VSBLP44-5FT-CN-V1 | AC100-277V | 44w | x | x |
| ZL-VSBLP18-2FT-CS-V1 | AC100-277V | 18w | 100% / 20% /OFF | x |
| ZL-VSBLP36-4FT-CS-V1 | AC100-277V | 36w | 100% / 20% /OFF | x |
| ZL-VSBLP44-5FT-CS-V1 | AC100-277V | 44w | 100% / 20% /OFF | x |
| ZL-VSBLP18-2FT-CE-V1 | AC100-277V | 18w | x | >90mins@7-15W |
| ZL-VSBLP36-4FT-CE-V1 | AC100-277V | 36w | x | >90mins@7-15W |
| ZL-VSBLP44-5FT-CE-V1 | AC100-277V | 44w | x | >90mins@7-15W |
| ZL-VSBLP18-2FT-CES-V1 | AC100-277V | 18w | 100% / 20% /OFF | >90mins@7-15W |
| ZL-VSBLP36-4FT-CES-V1 | AC100-277V | 36w | 100% / 20% /OFF | >90mins@7-15W |
| ZL-VSBLP44-5FT-CES-V1 | AC100-277V | 44w | 100% / 20% /OFF | >90mins@7-15W |
| Note: x -No this function |
LED Wraparound Fixture(V-series) Specification Details:
| LUMINAIRE INFORMATION |
| Model | ZL-VSBLP18-2FT-XX | ZL-VSBLP36-4FT-XX | ZL-VSBLP44-5FT-XX |
| Rated Power | 18W | 36W | 44W |
| Install | Surface Mount/Suspended/Linkable |
| Protection Rating | IP4X |
| Housing | Steel+AL |
| Optics | Polycarbonate Milky Diffuser |
| Connection Type | Terminal Block or Linkable |
| Operating Temperature | -20℃ to 40℃(Emergency version: 0℃ to 40℃) |
| Dimming (Option) | Microwave Sensor - 3 Stepped Version(100%-20%-OFF) |
| Emergency (Option) | 3 Hours+ @3.6W or 90Mins+@7--15W LiFePO4 Battery |
| PHOTOMETRIC |
| Luminous Efficacy | 120-150lm/w |
| LED | SMD2835 |
| CCT | 3000K/4000K/5000K/6000K |
| CRI | 85 |
| Beam Angle | 120 degree |
| ELECTRICAL |
| Input power Supply | AC200-240V, 50/60Hz / AC100-277V, 50/60Hz |
| Power Factor | > 0.9 |
| Useful Life@Ta25°(L70) | 54,000 hours |
| Electrical Classification | Class I |
| Dimensions | 620*84*72mm | 1220*84*72mm | 1520*84*72mm |
LED Wraparound Light Fixture Application
Supermarket |
Metro station |
Corridor |
