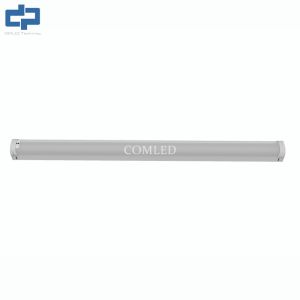

AC 100-277V Wraparound 5ft Led Shop Light With Emergency And Sensor
Dimming Function
5ft LED wraparound shop light is designed to provide
high-efficiency lighting with a durable steel and aluminum housing
and a milky polycarbonate diffuser. It integrates advanced SMD2835
LED technology, offering excellent lumen output and ensuring
long-lasting performance. With versatile installation options,
including surface mounting, suspension, and linking, this fixture
is perfect for a range of commercial applications, such as
supermarkets, parking lots, warehouses, and basements. It also
comes with emergency and sensor dimming functions, making it an
ideal solution for energy-saving and safety-focused environments.
Product Features:
High-transmittance polycarbonate diffuser for uniform light
distribution and reduced glare.
Advanced SMD2835 LED chip technology, providing superior brightness
and long service life.
Compatible with emergency function, offering up to 3 hours of
lighting with a 3.6W LiFePO4 battery.
Optional microwave sensor dimming function with 3-step dimming
(100%-20%-OFF) for enhanced energy efficiency.
Flexible installation options: surface-mounted, suspended, or
linkable for easy integration into various spaces.
LED Wraparound Fixtures(V-series) PARAMETER DATA
| Model | Input voltage | Watt | Sensor Dimming standby | Emergency |
| ZL-VSBLP18-2FT-CN-V2 | AC200-240V | 18w | x | x |
| ZL-VSBLP36-4FT-CN-V2 | AC200-240V | 36w | x | x |
| ZL-VSBLP44-5FT-CN-V2 | AC200-240V | 44w | x | x |
| ZL-VSBLP18-2FT-CS-V2 | AC200-240V | 18w | 100% / 20% /OFF | x |
| ZL-VSBLP36-4FT-CS-V2 | AC200-240V | 36w | 100% / 20% /OFF | x |
| ZL-VSBLP44-5FT-CS-V2 | AC200-240V | 44w | 100% / 20% /OFF | x |
| ZL-VSBLP18-2FT-CE-V2 | AC200-240V | 18w | x | >3hrs@3.6W |
| ZL-VSBLP36-4FT-CE-V2 | AC200-240V | 36w | x | >3hrs@3.6W |
| ZL-VSBLP44-5FT-CE-V2 | AC200-240V | 44w | x | >3hrs@3.6W |
| ZL-VSBLP18-2FT-CES-V2 | AC200-240V | 18w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-VSBLP36-4FT-CES-V2 | AC200-240V | 36w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-VSBLP44-5FT-CES-V2 | AC200-240V | 44w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-VSBLP18-2FT-CN-V1 | AC100-277V | 18w | x | x |
| ZL-VSBLP36-4FT-CN-V1 | AC100-277V | 36w | x | x |
| ZL-VSBLP44-5FT-CN-V1 | AC100-277V | 44w | x | x |
| ZL-VSBLP18-2FT-CS-V1 | AC100-277V | 18w | 100% / 20% /OFF | x |
| ZL-VSBLP36-4FT-CS-V1 | AC100-277V | 36w | 100% / 20% /OFF | x |
| ZL-VSBLP44-5FT-CS-V1 | AC100-277V | 44w | 100% / 20% /OFF | x |
| ZL-VSBLP18-2FT-CE-V1 | AC100-277V | 18w | x | >90mins@7-15W |
| ZL-VSBLP36-4FT-CE-V1 | AC100-277V | 36w | x | >90mins@7-15W |
| ZL-VSBLP44-5FT-CE-V1 | AC100-277V | 44w | x | >90mins@7-15W |
| ZL-VSBLP18-2FT-CES-V1 | AC100-277V | 18w | 100% / 20% /OFF | >90mins@7-15W |
| ZL-VSBLP36-4FT-CES-V1 | AC100-277V | 36w | 100% / 20% /OFF | >90mins@7-15W |
| ZL-VSBLP44-5FT-CES-V1 | AC100-277V | 44w | 100% / 20% /OFF | >90mins@7-15W |
| Note: x -No this function |
LED Wraparound Fixture(V-series) Specification Details:
| LUMINAIRE INFORMATION |
| Model | ZL-VSBLP18-2FT-XX | ZL-VSBLP36-4FT-XX | ZL-VSBLP44-5FT-XX |
| Rated Power | 18W | 36W | 44W |
| Install | Surface Mount/Suspended/Linkable |
| Protection Rating | IP4X |
| Housing | Steel+AL |
| Optics | Polycarbonate Milky Diffuser |
| Connection Type | Terminal Block or Linkable |
| Operating Temperature | -20℃ to 40℃(Emergency version: 0℃ to 40℃) |
| Dimming (Option) | Microwave Sensor - 3 Stepped Version(100%-20%-OFF) |
| Emergency (Option) | 3 Hours+ @3.6W or 90Mins+@7--15W LiFePO4 Battery |
| PHOTOMETRIC |
| Luminous Efficacy | 120-150lm/w |
| LED | SMD2835 |
| CCT | 3000K/4000K/5000K/6000K |
| CRI | 85 |
| Beam Angle | 120 degree |
| ELECTRICAL |
| Input power Supply | AC200-240V, 50/60Hz / AC100-277V, 50/60Hz |
| Power Factor | > 0.9 |
| Useful Life@Ta25°(L70) | 54,000 hours |
| Electrical Classification | Class I |
| Dimensions | 620*84*72mm | 1220*84*72mm | 1520*84*72mm |
LED Wraparound Light Fixture Application
Supermarket |
Metro station |
Corridor |
