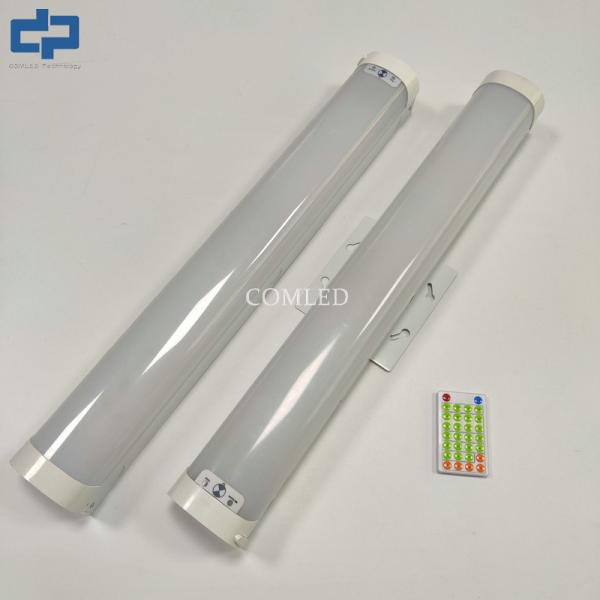

AC 220V 2 Foot LED Wraparound Light Fixture With Microwave Sensor
Dimming Function
Introducing our 2-foot LED wraparound light fixture, designed to
deliver optimal illumination with advanced SMD LED technology. This
fixture offers a high luminous efficacy of up to 150 lm/W and is
available in a range of color temperatures (3000K, 4000K, 5000K,
and 6000K) to suit various environments. Ideal for supermarkets,
stairwells, corridors, and parking lots, it combines efficiency
with versatility. Equipped with a microwave sensor dimming
function, this fixture adjusts its brightness based on motion,
providing energy-saving benefits and extended lifespan. It also
includes optional emergency lighting for enhanced safety during
power outages.
Product Features:
Energy-Efficient Lighting: High luminous efficacy of 120-150lm/W
ensures bright, energy-saving illumination.
Flexible Installation Options: Can be surface-mounted, suspended,
or linked together for flexible installation.
Microwave Sensor Dimming: Optional microwave sensor adjusts light
output (100%-20%-OFF) based on motion detection, saving energy when
not in use.
Durable Construction: Steel and aluminum housing with a
polycarbonate milky diffuser ensures durability and high light
transmittance (88%).
Emergency Lighting Option: Provides up to 3 hours of emergency
lighting with a LiFePO4 battery (available in some versions),
ensuring safety during power outages.
LED Wraparound Fixtures(V-series) PARAMETER DATA
| Model | Input voltage | Watt | Sensor Dimming standby | Emergency |
| ZL-VSBLP18-2FT-CN-V2 | AC200-240V | 18w | x | x |
| ZL-VSBLP36-4FT-CN-V2 | AC200-240V | 36w | x | x |
| ZL-VSBLP44-5FT-CN-V2 | AC200-240V | 44w | x | x |
| ZL-VSBLP18-2FT-CS-V2 | AC200-240V | 18w | 100% / 20% /OFF | x |
| ZL-VSBLP36-4FT-CS-V2 | AC200-240V | 36w | 100% / 20% /OFF | x |
| ZL-VSBLP44-5FT-CS-V2 | AC200-240V | 44w | 100% / 20% /OFF | x |
| ZL-VSBLP18-2FT-CE-V2 | AC200-240V | 18w | x | >3hrs@3.6W |
| ZL-VSBLP36-4FT-CE-V2 | AC200-240V | 36w | x | >3hrs@3.6W |
| ZL-VSBLP44-5FT-CE-V2 | AC200-240V | 44w | x | >3hrs@3.6W |
| ZL-VSBLP18-2FT-CES-V2 | AC200-240V | 18w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-VSBLP36-4FT-CES-V2 | AC200-240V | 36w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-VSBLP44-5FT-CES-V2 | AC200-240V | 44w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-VSBLP18-2FT-CN-V1 | AC100-277V | 18w | x | x |
| ZL-VSBLP36-4FT-CN-V1 | AC100-277V | 36w | x | x |
| ZL-VSBLP44-5FT-CN-V1 | AC100-277V | 44w | x | x |
| ZL-VSBLP18-2FT-CS-V1 | AC100-277V | 18w | 100% / 20% /OFF | x |
| ZL-VSBLP36-4FT-CS-V1 | AC100-277V | 36w | 100% / 20% /OFF | x |
| ZL-VSBLP44-5FT-CS-V1 | AC100-277V | 44w | 100% / 20% /OFF | x |
| ZL-VSBLP18-2FT-CE-V1 | AC100-277V | 18w | x | >90mins@7-15W |
| ZL-VSBLP36-4FT-CE-V1 | AC100-277V | 36w | x | >90mins@7-15W |
| ZL-VSBLP44-5FT-CE-V1 | AC100-277V | 44w | x | >90mins@7-15W |
| ZL-VSBLP18-2FT-CES-V1 | AC100-277V | 18w | 100% / 20% /OFF | >90mins@7-15W |
| ZL-VSBLP36-4FT-CES-V1 | AC100-277V | 36w | 100% / 20% /OFF | >90mins@7-15W |
| ZL-VSBLP44-5FT-CES-V1 | AC100-277V | 44w | 100% / 20% /OFF | >90mins@7-15W |
| Note: x -No this function |
LED Wraparound Fixture(V-series) Specification Details:
| LUMINAIRE INFORMATION |
| Model | ZL-VSBLP18-2FT-XX | ZL-VSBLP36-4FT-XX | ZL-VSBLP44-5FT-XX |
| Rated Power | 18W | 36W | 44W |
| Install | Surface Mount/Suspended/Linkable |
| Protection Rating | IP4X |
| Housing | Steel+AL |
| Optics | Polycarbonate Milky Diffuser |
| Connection Type | Terminal Block or Linkable |
| Operating Temperature | -20℃ to 40℃(Emergency version: 0℃ to 40℃) |
| Dimming (Option) | Microwave Sensor - 3 Stepped Version(100%-20%-OFF) |
| Emergency (Option) | 3 Hours+ @3.6W or 90Mins+@7--15W LiFePO4 Battery |
| PHOTOMETRIC |
| Luminous Efficacy | 120-150lm/w |
| LED | SMD2835 |
| CCT | 3000K/4000K/5000K/6000K |
| CRI | 85 |
| Beam Angle | 120 degree |
| ELECTRICAL |
| Input power Supply | AC200-240V, 50/60Hz / AC100-277V, 50/60Hz |
| Power Factor | > 0.9 |
| Useful Life@Ta25°(L70) | 54,000 hours |
| Electrical Classification | Class I |
| Dimensions | 620*84*72mm | 1220*84*72mm | 1520*84*72mm |
LED Wraparound Light Fixture Application
Supermarket |
Metro station |
Corridor |
